Standard steel wire rope construction: 6x36WS IWRC, 1960N/mm2*
(*ø 3mm - ø 7mm rope constrcution: 6x19M WSC 1960 N/mm2)

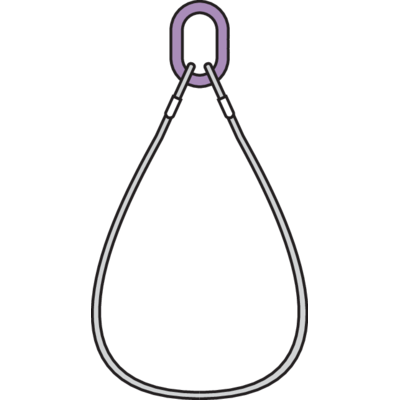

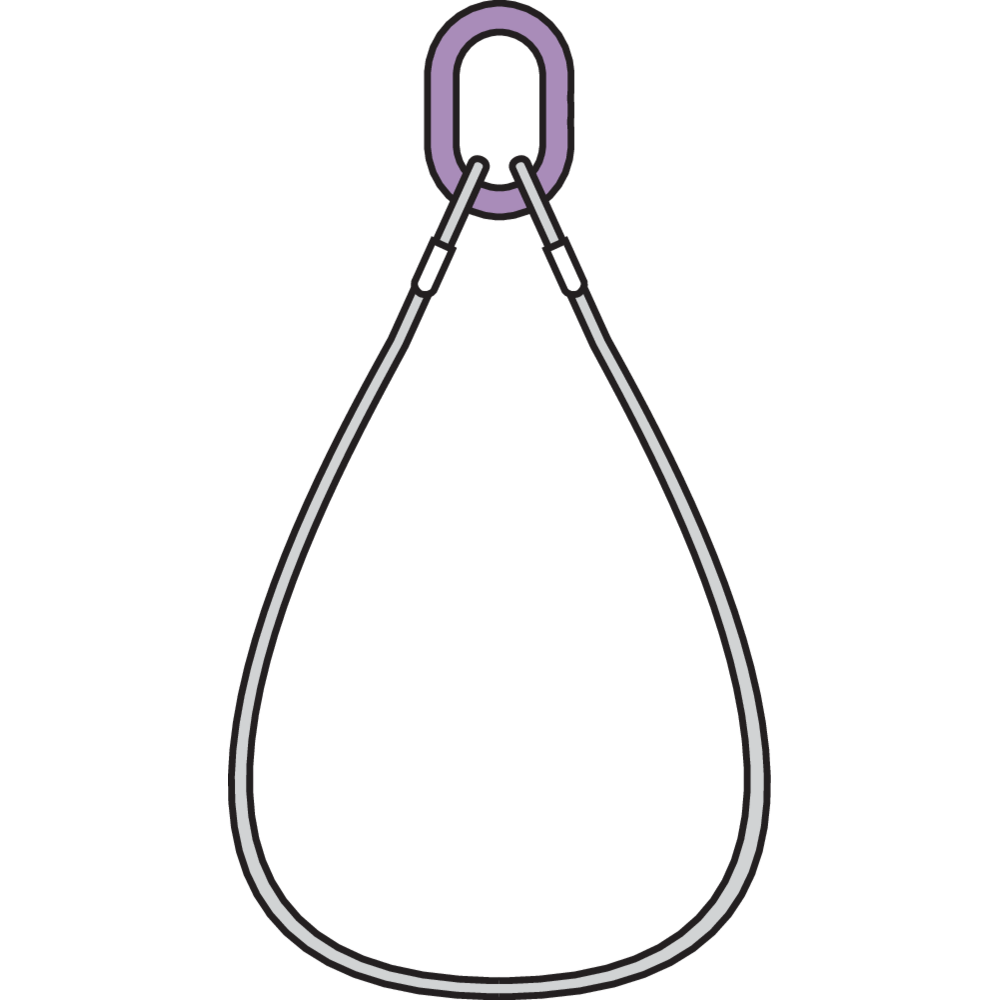

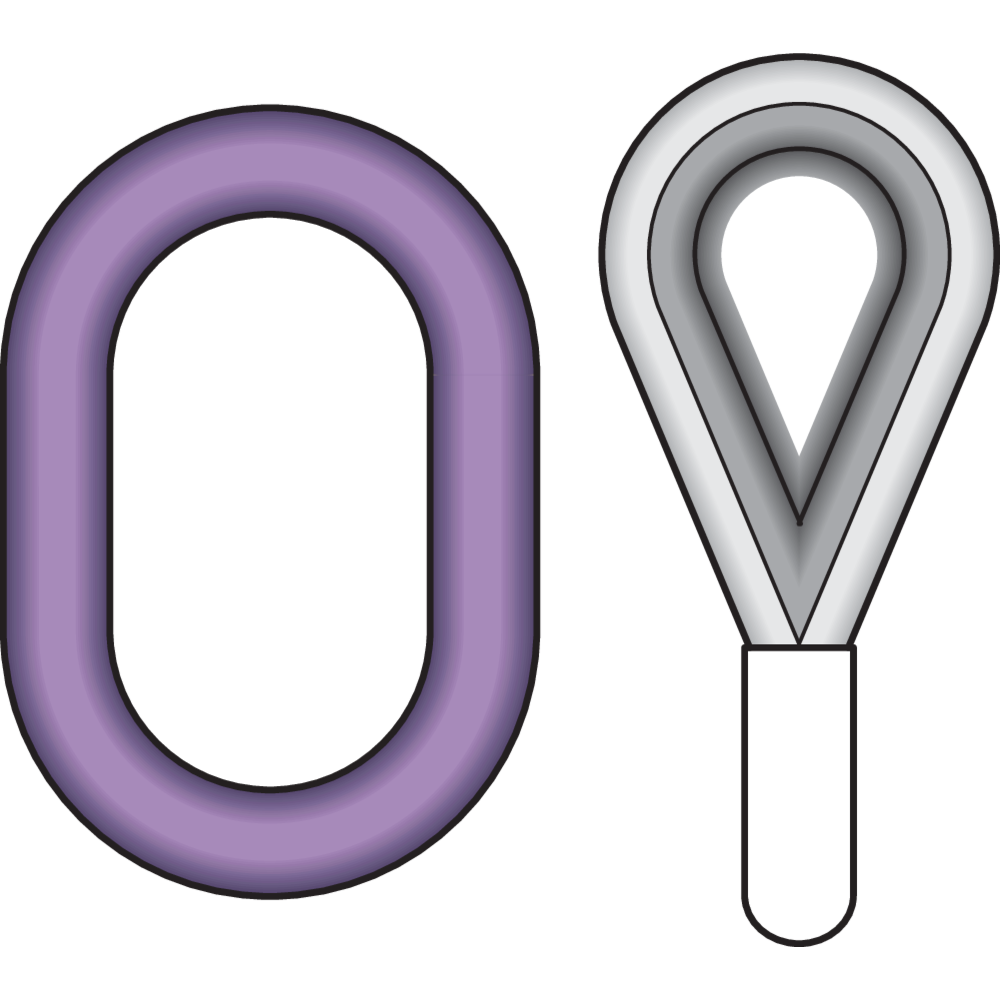

Design: Endless with master link and mechanical aluminium spliced thimbles.
Load table at Technical Data -> Show table
Please specify the needed (working) length with your request.
Other rope constructions possible on request. In that case, please contact us to discuss the possible options or specify it with your request.
- Note: We recommend that the sling not is bent over a diameter less than 6 times the wire rope diameter without reducing the WLL.
Stållinestroppar 6X36 IWRC 1960N/mm2
enligt EN 13414-1
|
Säkerhetsfaktor 4:1 |
⌀ | Enkel | 2-partig & U-form i vinkel* | 3−4-partig* | Ändlös | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
| Rakt | Snarat | U-form | 0°−45° | 45°−60° | 0°−45° | 45°−60° | Rakt | Snarat | U-form | ||
| mm | Max last (WLL) i ton | ||||||||||
| 3 | 0,11 | 0,09 | 0,22 | 1,15 | 1,11 | 0,23 | 0,16 | 0,22 | 0,17 | 0,44 | |
| 4 | 0,19 | 0,15 | 0,38 | 0,27 | 0,19 | 0,40 | 0,29 | 0,38 | 0,30 | 0,76 | |
| 5 | 0,30 | 0,24 | 0,60 | 0,42 | 0,30 | 0,63 | 0,45 | 0,60 | 0,48 | 1,20 | |
| 6 | 0,43 | 0,34 | 0,86 | 0,60 | 0,43 | 0,90 | 0,65 | 0,86 | 0,69 | 1,72 | |
| 7 | 0,60 | 0,50 | 1,20 | 0,80 | 0,60 | 1,26 | 0,90 | 1,20 | 0,96 | 2,40 | |
| 8 | 0,80 | 0,65 | 1,60 | 1,15 | 0,80 | 1,70 | 1,20 | 1,60 | 1,30 | 3,20 | |
| 9 | 1,05 | 0,80 | 2,10 | 1,45 | 1,05 | 2,20 | 1,80 | 2,10 | 1,70 | 4,20 | |
| 10 | 1,30 | 1,00 | 2,60 | 1,80 | 1,30 | 2,70 | 1,90 | 2,60 | 2,00 | 5,20 | |
| 11 | 1,50 | 1,20 | 3,00 | 2,20 | 1,50 | 3,30 | 2,30 | 3,00 | 2,50 | 6,00 | |
| 12 | 1,80 | 1,40 | 3,60 | 2,60 | 1,80 | 3,90 | 2,80 | 3,60 | 3,00 | 7,20 | |
| 13 | 2,20 | 1,80 | 4,40 | 3,00 | 2,20 | 4,50 | 3,20 | 4,40 | 3,50 | 8,80 | |
| 14 | 2,50 | 2,00 | 5,00 | 3,50 | 2,50 | 5,30 | 3,80 | 5,00 | 4,00 | 10,00 | |
| 16 | 3,30 | 2,60 | 6,60 | 4,60 | 3,30 | 6,90 | 4,90 | 6,60 | 5,20 | 13,20 | |
| 18 | 4,10 | 3,30 | 8,20 | 5,80 | 4,10 | 8,70 | 6,20 | 8,20 | 6,60 | 16,40 | |
| 20 | 5,10 | 4,10 | 10,20 | 7,20 | 5,10 | 10,70 | 7,70 | 10,20 | 8,20 | 20,40 | |
| 22 | 6,20 | 5,00 | 12,40 | 8,70 | 6,20 | 13,00 | 9,30 | 12,40 | 10,00 | 24,80 | |
| 24 | 7,40 | 5,90 | 14,80 | 10,30 | 7,40 | 15,50 | 11,10 | 14,80 | 11,80 | 29,60 | |
| 26 | 8,70 | 7,00 | 17,40 | 12,10 | 8,70 | 18,20 | 13,00 | 17,40 | 13,80 | 34,80 | |
| 28 | 10,00 | 8,00 | 20,00 | 14,00 | 10,00 | 21,00 | 15,00 | 20,00 | 16,00 | 40,00 | |
| 32 | 13,00 | 10,40 | 26,00 | 18,40 | 13,00 | 27,50 | 19,70 | 26,00 | 21,00 | 52,00 | |
| 36 | 16,60 | 13,30 | 33,00 | 23,00 | 16,60 | 35,00 | 25,00 | 33,00 | 26,50 | 66,00 | |
| 40 | 20,50 | 16,40 | 41,00 | 29,00 | 20,50 | 43,00 | 31,00 | 41,00 | 33,00 | 82,00 | |
| 44 | 25,00 | 20,00 | 50,00 | 35,00 | 25,00 | 52,00 | 37,00 | 50,00 | 40,00 | 100,00 | |
| 48 | 29,50 | 23,60 | 59,00 | 41,00 | 29,50 | 62,00 | 44,00 | 59,00 | 47,00 | 118,00 | |
| 52 | 35,00 | 28,00 | 70,00 | 48,00 | 35,00 | 73,00 | 52,00 | 70,00 | 55,00 | 140,00 | |
| Faktor (KL) | 1 | 0,8 | 2 | 1,4 | 1 | 2,1 | 1,5 | 2 | 1,6 | 4 | |
| * När flerpartiga redskap används i snarat lyft - reducera värdet med 20%. | |||||||||||
